Equipment

Features:

• PRESSURIZED LUBRICATION SYSTEM
• LEVELING SCREWS WITH MOUNTING PADS BUILT IN
• POWER RAPID REVERSE TO ALL HEADS
• WIPERS ON ALL WAYS 
• CENTRALIZED CONTROL PANEL FOR ALL OPERATIONS ON SWIVEL ARM 
• FULL LENGTH BRONZE TAPERED GIBBING 
• SET OF FOUR (4) REVERSABLE TABLE JAWS 
• SET OF FOUR (4) MOUNTED CHIP GUARDS
• HANDWHEELS AND DIALS ARE CHROME PLATED
• EMERGERNCY STOP SWITCH 
• PRECISION, HARDENED AND GROUND GEARING
• SEPARATE AND TOTALLY ENCLOSED ELECTRICAL EQUIPMENT CABINETS
• ONE VERTICAL HEAD WITH STANDARD TOOL HOLDER
• ONE VERTICAL HEAD WITH INDEXING PENTAGORAL TURRET
• ONE SIDE HEAD WITH STANDARD TOOL HOLDER
• SHOCK ABSORBER COUPLING FOR MOTOR

Equipped With:

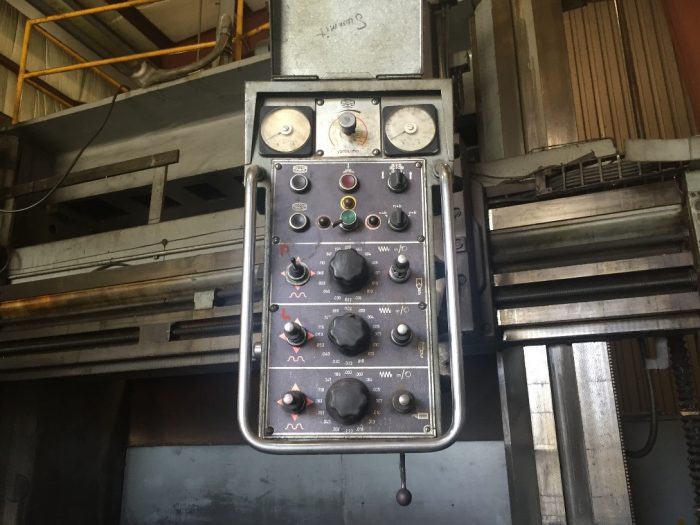

• FULL PENDANT CONTROLS 
• 5-POSITION TURRET 
• VERTICAL RAM 
• (4) ADJUSTABLE TOP JAWS 
• THREADING ON TURRET HEAD 
• 75 HP MAIN MOTOR 
• INSPECT IN PLANT UNDER POWER!

Specifications:

Capacities:

• MAXIMUM SWING WITH VERICAL HEAD: 169 ¼ “
• MAXIMUM SWING WITH SIDE HEAD: 169 “
• MAXIMUM TURNING HEIGHT ON TABLE: 100 “
• MAXIMUM WORK PIECE WEIGHT: 40,000 lbs.

Table:

• DIAMETER OF THE TABLE:  157 ½ “
• THICKNESS OF THE TABLE: 10 ¼ “
• NUMBER OF T – SLOTS (RADIAL):  24
• T SLOT SIZE:  1  1/8 “
• TABLE SPEEDS – NUMBER: INFINITELY VARIABLE
• TABLE SPEED RANGE:  1.0 – 92 RPM
• TABLE DRIVE MOTOR {D.C.}: 75 HP
• TABLE BEARINGS (TYPE): PRECISION TAPERED ROLLER

Please contact us for additional information, specs, pictures, and pricing!
